ITI - Fluidyne Wood Gasifier



High thermal efficiency for electrical power generation

Well-proven performance on engine systems

Affordable continuous operation solutions

In conjunction with Fluidyne Gasification (New Zealand), ITI has developed several demonstration and commercial gasifier/generator systems. In each, the gasifier start up is achieved through electric ignition and engine fuel-gas is available within 10 minutes. The engine starts and runs on wood gas only, there is no fossil-fuel used whatsoever.

  • Demonstration system 1: The smallest system employs a standard 3.5 litre automotive engine with a 15 kVA single-phase generator unit. Gasifier and fuel control is was not automated.



  • Demonstration system 2: A larger hearth gasifier produces gas for a turbo charged 6.5 litre Ford spark ignition engine producing more than 30kW. This system is ideal for trials of small quantities of fuels. (ITI offer consultancy on development & testing of gasifier fuels from waste streams. Please contact us for more information.)

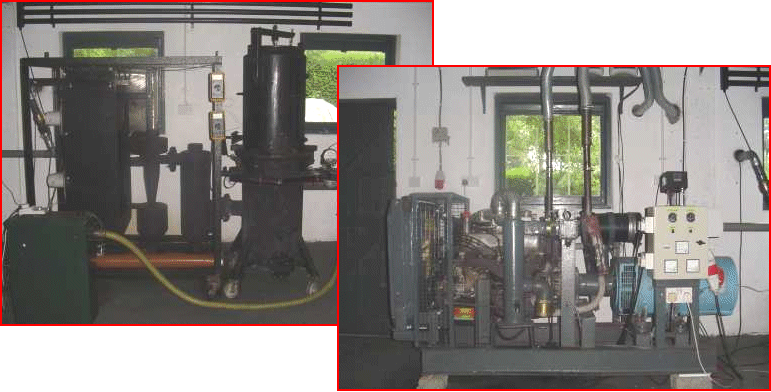

Laboratory Class Gasifier & Ford Engine @ ITI


  • Commercial system: This Atlantic Class gasifier is optimised for MDF fuel. The gasifier can start, run and shutdown fully automatically, and runs a Hino gas engine producing 100kWe of synchronised power into the grid. Read more information here.

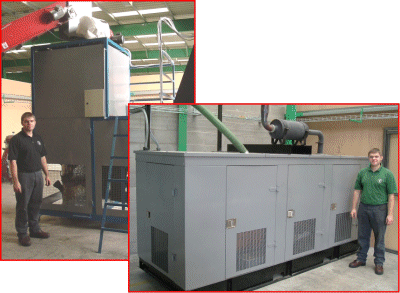

Atlantic Class Gasifier & Hino Gas Engine







 ITI has developed a PLC control and continuous feed system to simplify the use of the system and significantly reduce manpower requirements.

Target specifications for the full range of ITI-Fluidyne gasifier systems are illustrated here.

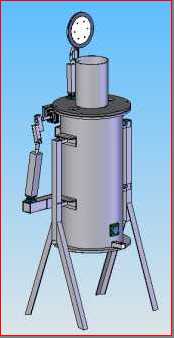

Laboratory Class Gasifier - Concept Drawing
Visit Fluidyne:

Discover ITI - Fluidyne Gasifier Range

Click Here

Discover ITI - Fluidyne Gasifier Range
